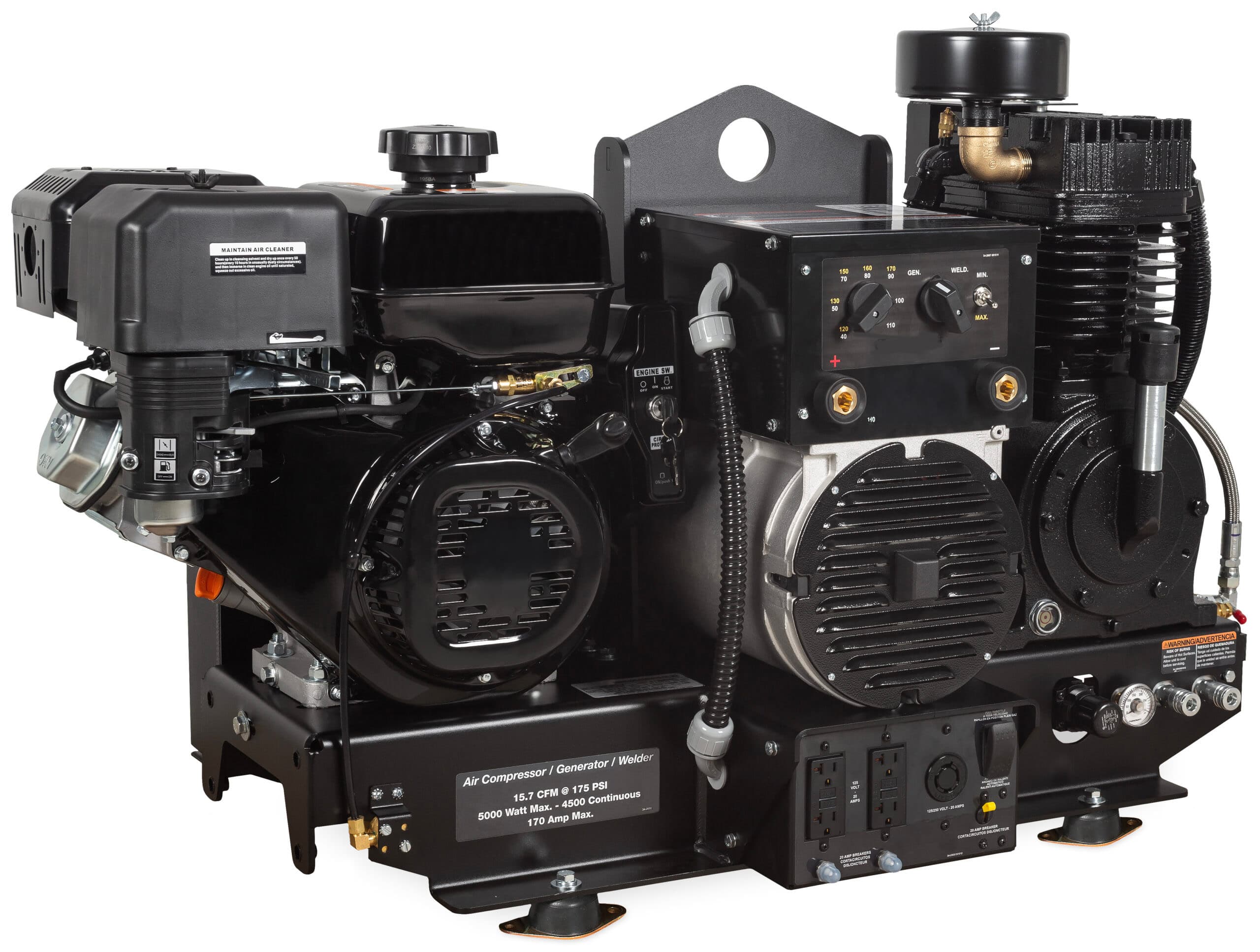

This AGW Series combines an air compressor, generator and welder into one machine, making it the complete on-site unit to efficiently tackle numerous jobs at once.

Compressor Pump:
·Cast iron compressor pump
·Splash lubricated
·Stainless-steel braided discharge hose
·Large canister intake filter
·Oil level sight indicator

Generator:
·Brush-type 2 pole 120V/240V alternator
·Total harmonic distortion (THD) less than 6%
·100% copper windings

Welder:
·Amperage selection switch, 170A or 220A maximum

Frame:
·Powder coated two-piece belt guard

Components:
·Regulator and two gauges for tank and outlet pressure
·Manual drain valves for proper maintenance
·16½-inch fly wheel

Limited Warranty:
·3 year engine

AGW Series Operation
Generator Mode:
·AC current only
·Selector switch set to idle down
·Switch is set to full throttle
Welder Mode:
·DC current only
·Engine must be running full throttle
·Selector switch must be set to full throttle

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult Factory.
Electric Start – battery and battery cables not included.
Equipped with 150-PSI maximum rated regulator.
