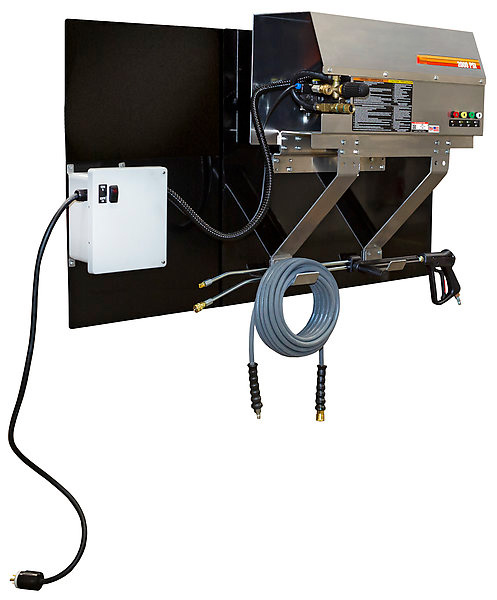

This electric series can be used to clean in various locations. Mount it in a garage, shop or wash bay to blast away mud and dirt from vehicles and equipment.
Pump:
- Factory preset stainless-steel and brass trapping unloader
- Forged brass manifold
- Thermal relief valve
- External quick connect low pressure detergent injector
- Pump accepts incoming water up to 165°F
Motor:
- Totally enclosed fan-cooled electric motor with manual thermal overload protection
- 4-foot power cord
Frame:
- Aluminum frame with wall-mounting brackets
Components:
- Time delay shutdown
- Remote mounted electrical box, must be within 3½-feet of unit
Unit Includes:
- Quick connect nozzles – 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch non-marking high pressure hose
- Professional-grade insulated trigger gun with safety lock-off
- 36-inch adjustable pressure insulated dual lance
Limited Warranty:
- 1 year electric motor
| MODEL NUMBER | PSI | GPM | HORSEPOWER/MOTOR | PUMP | PLUG TYPE |
|---|---|---|---|---|---|
| CAW-2004-0ME1 | 2000 | 3.9 | 6.0 HP, 230V, 1Ø, 24.1A | General | NEMA 6-30P |
| CAW-2004-0ME3* | 2000 | 3.9 | 6.0 HP, 230V, 3Ø, 17.3A or 6.0 HP, 460V, 3Ø, 8.64A | General | NEMA L15-20P |
| CAW-3004-0ME1 | 3000 | 3.9 | 8.0 HP, 230V, 1Ø, 34.5A | General | NEMA 6-50P |
| CAW-3004-0ME3* | 3000 | 3.9 | 8.0 HP, 230V, 3Ø, 22.8A or 8.0 HP, 460V, 3Ø, 11.4A | General | NEMA L15-30P |
| CAW-4004-0ME1 | 4000 | 4.0 | 10.0 HP, 230V, 1Ø, 40.8A | General | NEMA 6-50P |
*460V motors available as options
