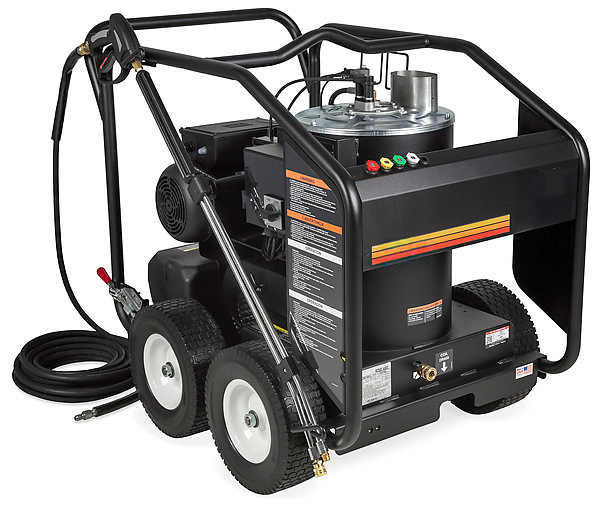

The DHS Series is designed with a powder coated steel frame, making it extremely durable. It is ideal for cleaning on construction sites, farms, mining and oil fields.
Pump:
- Stainless-steel and brass unloader
- Factory preset unloader
- Forged brass manifold
- Thermal relief valve
- High pressure detergent injector
Motor:
- Totally enclosed fan-cooled electric motor with manual thermal overload protection
- 35-foot power cord
Frame:
- Reinforced powder coated steel frame with center balanced lift
- 13-inch flat-free tires
Components:
- Energy-efficient top-fired heat exchanger
- No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous:
- Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F
Unit Includes:
- Quick connect nozzles – 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch steel wire-braided high pressure hose
- Adjustable pressure insulated dual lance
- Professional-grade insulated trigger gun with safety lock-off
Limited Warranty:
- 1 year electric motor
Certification:
- ETL Certified – US and Canada
| MODEL NUMBER | PSI | GPM | HORSEPOWER/MOTOR | PUMP | PLUG TYPE | BURNER FUEL TANK CAPACITY | BURNER FUEL CONSUMPTION | BTU PER HOUR |
|---|---|---|---|---|---|---|---|---|
| DH-1002-SE0E1G | 1000 | 2.0 | 1.5 HP, 120V, 1Ø, 15.0A | General | NEMA 5-15P | 4.0 gallons | 1.33 gph | 186,000 |
| DH-1002-SE0E1M* | 1000 | 2.0 | 1.5 HP, 120V, 1Ø, 15.0A | Mi-T-M | NEMA 5-15P | 4.0 gallons | 1.33 gph | 186,000 |
| DH-1502-SE0E1G | 1500 | 2.0 | 2.0 HP, 120V, 1Ø, 19.0A | General | NEMA 5-20P | 4.0 gallons | 1.21 gph | 169,000 |
| DH-1502-SE0E1M* | 1500 | 2.0 | 2.0 HP, 120V, 1Ø, 19.0A | Mi-T-M | NEMA 5-20P | 4.0 gallons | 1.21 gph | 169,000 |
| DH-2003-SE0E2G | 2000 | 2.8 | 4.0 HP, 230V, 1Ø, 18.0A | General | NEMA 6-20P | 4.0 gallons | 1.48 gph | 207,200 |
| DH-2003-SE0E2M* | 2000 | 2.8 | 4.0 HP, 230V, 1Ø, 18.0A | Mi-T-M | NEMA 6-20P | 4.0 gallons | 1.48 gph | 207,200 |
