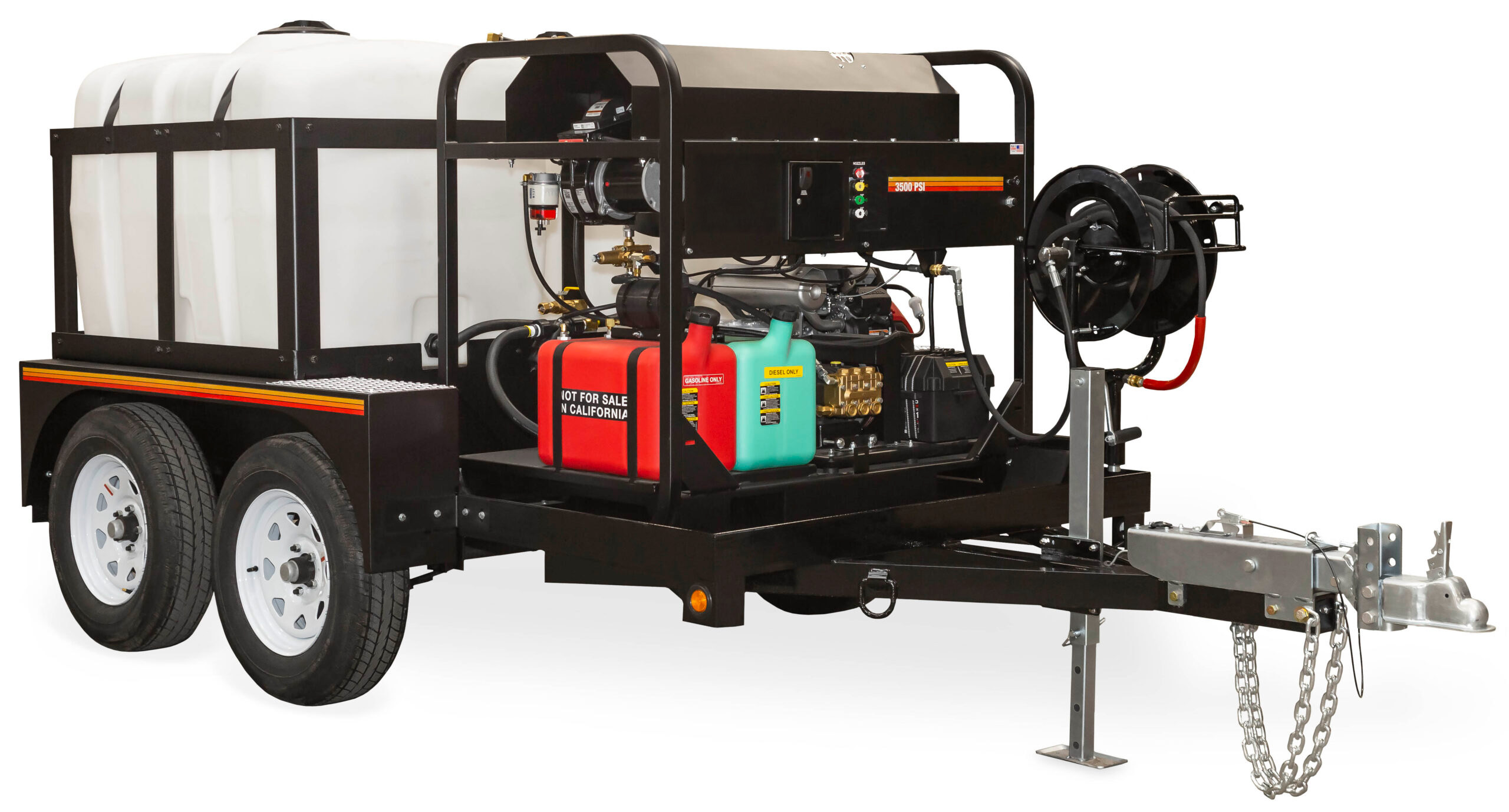

These trailers are ideal for cleaning at remote jobsites. Customize a trailer with an industrial pressure washer, hose reel and accessories to fit your job requirements.

Features:

• Jack with pad
• 2-inch ball hitch
• Rubber mounted sealed lights
• Tanks are enclosed in a powder coated steel frame
• Will fit all Mi-T-M belt-driven pressure washers (Pressure washers sold separately)
• 3/16-inch solid steel trailer deck plate
• Storage area located under the water tanks
• (2) 200-gallon water tanks plumbed together
• Backflow preventers
• Trailer tank bypass

STEP 1: Pick a Dual-Axle Trailer:
AW-9000-0003 With surge brakes and (2) 200-gallon water tank
AW-9000-0004 With electric brakes and (2) 200-gallon water tank

STEP 2: Pick Your Trailer Accessories and Options:
HOSE REELS
High Pressure Hose Reels
These high pressure hose reels include a jumper hose and mounting bracket.
TX-0001 13-inch reel
TX-0002 16-inch reel

Dual High and Single Low Pressure Hose Reels
Includes mounting brackets, plumbing and jumper hoses for two high pressure hose reels and one low pressure hose reel.
TX-0023 16-inch reel

Low Pressure Hose Reels
These low pressure hose reels include a mounting bracket and plumbing.
TX-0003 16-inch reel

Replacement Hose Reel Parts
When adding hose reels to the dual-axle trailers, use the following jumper hose and mounting brackets.
15-0159 40-inch x 3/8-inch jumper hose, black, 4500-PSI
13-0179A18 Mounting bracket, low pressure hose reel/single high pressure reel
13-0258A18 Mounting bracket, dual high pressure reels
50-0195 13-inch hose reel, 150-foot maximum hose length, rated for units up to 4000-PSI
50-0196 16-inch hose reel, 200-foot maximum hose length, rated for units up to 4000-PSI

TANK DRAINS
Dual Tank Drain
This tank drain includes a valve and drain hoses for trailers equipped with two 200-gallon water tank.
TX-0022 Tank drain

TRAILER HITCHES
Replaces the standard 2-inch ball hitch with an adjustable trailer coupler hitch or lunette ring hitch. Includes hitch with brackets and hardware.
TX-0009 Adjustable trailer coupler hitch for use with AW-9000-0004 trailers
TX-0010 Adjustable trailer coupler hitch for use with AW-9000-0003 trailers
·Heavy-duty 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket with visual indication of proper closure around the ball – all to ensure a quick, easy and secure hook-up
TX-0019 Lunette ring hitch
·3-inch integrated lunette ring for use with pintle hitches

STEP 3: Pick Your Pressure Washer and Options
Choose a cold or hot water belt-driven pressure washer for your cleaning needs. Consult factory for skid prep options and additional pressure washer options available.
