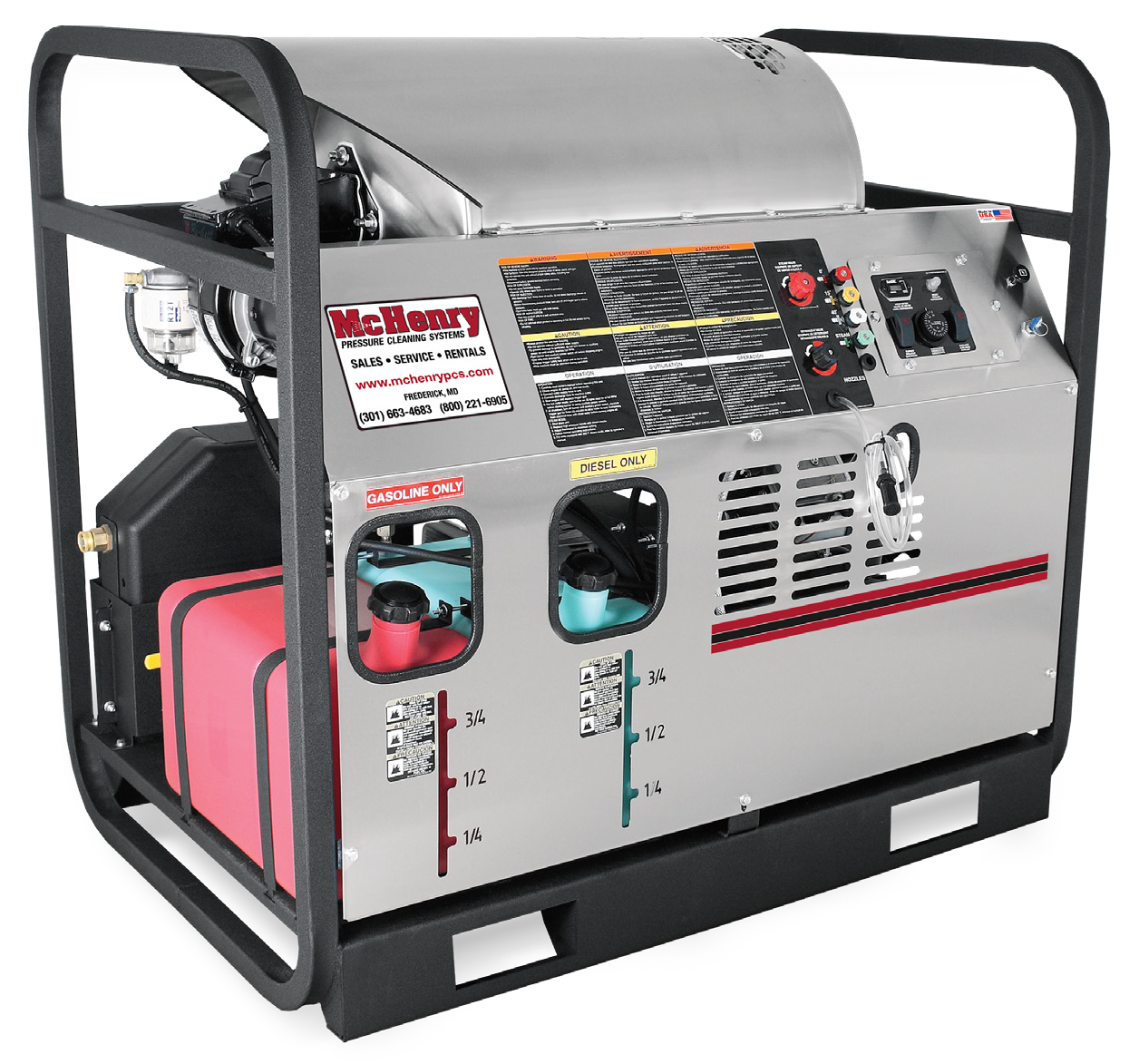

Most reliable for the heaviest construction applications, the HDS Series is a powerhouse. This series features a wraparound frame with stainless-steel panels for maximum durability.

Pump:

• Factory preset unloader
• Adjustable high pressure detergent injector

Engine:

• Liquid-cooled Kubota diesel engine with electric start – battery not included

Frame:

• Heavy-duty powder coated steel square tube skid frame
• Stainless-steel coil wrap, control panel and removable front panel

Components:

• Horizontal schedule 80 pipe coil
• 120V/15-amp auxiliary GFCI outlet
• 2900-watt generator for efficient power to the burner and controls
• No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
• Three-way ball valve for inlet selection
• Detergent and steam valves
• Adjustable thermostat
• Hour meter

Miscellaneous:

• Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes:

• Quick connect nozzles – 0°, 15°, 25° and 40° plus wet steam and fixed detergent nozzle
• 50-foot x 3/8-inch steel wire-braided high pressure hose
• Adjustable pressure insulated dual lance
• Professional-grade insulated trigger gun with safety lock-off

Limited Warranty:

• 3 year engine

Certification:

• CSA Certified – US and Canada
