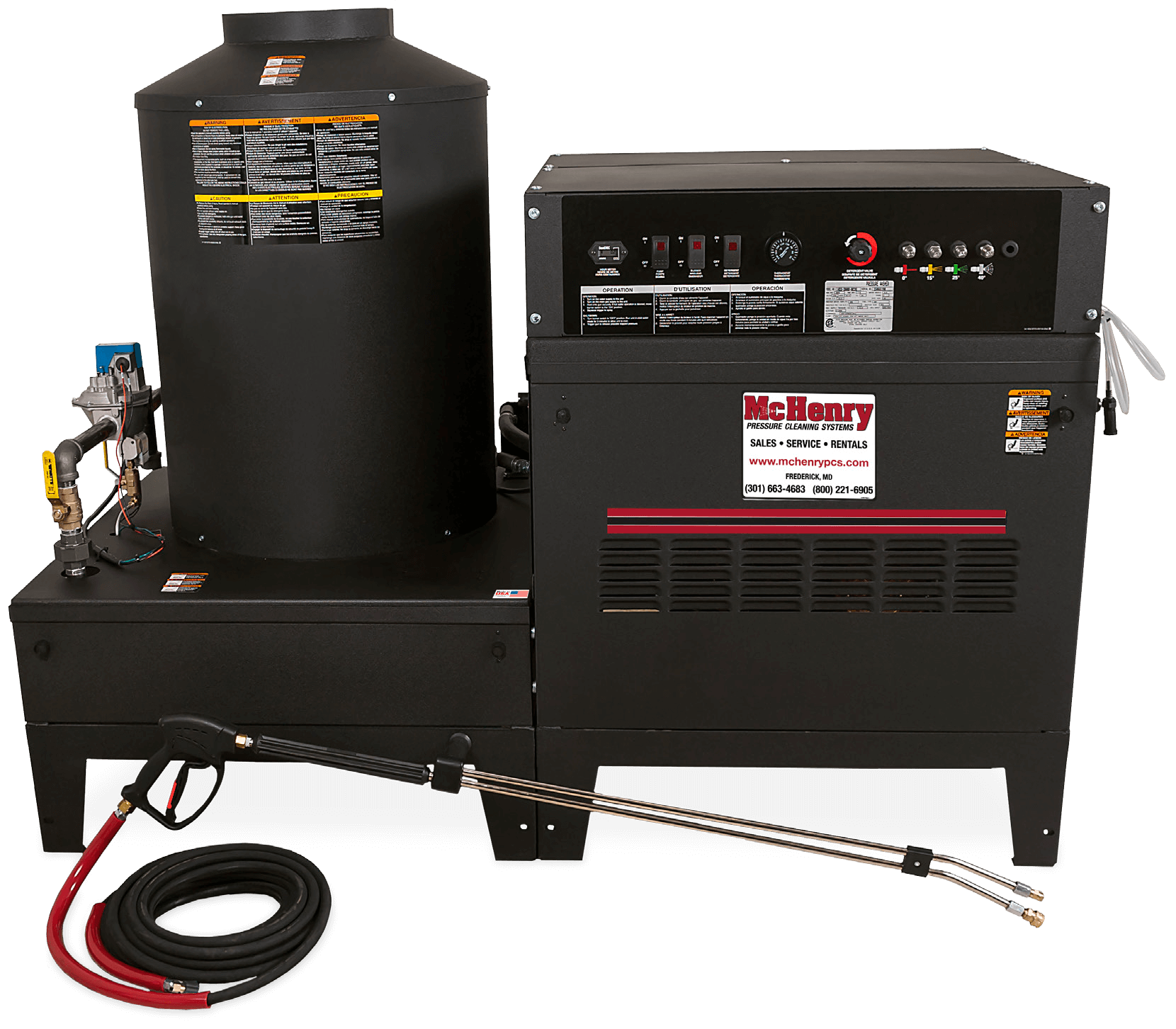

The HEG High Volume Series can handle jobs that require maximum cleaning power. This series has a unique coil design that keeps the unit temperature steady.
Pump:
- Factory preset unloader
Motor:
- Open drip-proof electric motor with manual thermal overload protection
Frame:
- Powder coated steel frame with removable side panels
Components:
- 3/4-inch schedule 80 pipe coil with 8-pancake heat exchanger
- Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 12-inch stack
- Electronic ignition with intermittent pilot
- Adjustable outlet thermostat for main temperature control
- Polyethylene float tank (8-gallon with in-line screen filter)
- Time delay shutdown
- Hour meter
Miscellaneous:
- Unique coil design allows thermostat to sense upstream water temperature to regulate outlet temperatures preventing large temperature swings
- Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes:
- Quick connect nozzles – 0°, 15°, 25°, 40° and fixed detergent nozzle
- 50-foot x 1/2-inch steel wire-braided high pressure hose
- Adjustable pressure insulated dual lance
- Professional-grade insulated trigger gun with safety lock-off
Limited Warranty:
- 1 year electric motor
Certification:
- ETL Certified – US and Canada
| MODEL NUMBER | PSI | GPM | Horsepower/Motor | Natural Gas BTU/hr | LP Gas BTU/hr |
|---|---|---|---|---|---|
| HEG-2010-1E3G | 2000 | 9.9 | 15.0 HP, 230V, 3Ø, 40.6A | 768,000 | 730,000 |
| HEG-2010-1E4G | 2000 | 9.9 | 15.0 HP, 460V, 3Ø, 20.3A | 768,000 | 730,000 |
| HEG-2010-1E5G | 2000 | 9.9 | 15.0 HP, 575V, 3Ø, 16.2A | 768,000 | 730,000 |
| HEG-2010-1E9G | 2000 | 9.9 | 15.0 HP, 208V, 3Ø, 44.0A | 768,000 | 730,000 |
| HEG-3008-1E3G | 3000 | 7.8 | 15.0 HP, 230V, 3Ø, 40.6A | 650,000 | 619,500 |
| HEG-3008-1E4G | 3000 | 7.8 | 15.0 HP, 460V, 3Ø, 20.3A | 650,000 | 619,500 |
| HEG-3008-1E5G | 3000 | 7.8 | 15.0 HP, 575V, 3Ø, 16.2A | 650,000 | 619,500 |
| HEG-3008-1E9G | 3000 | 7.8 | 15.0 HP, 208V, 3Ø, 44.0A | 650,000 | 619,500 |
