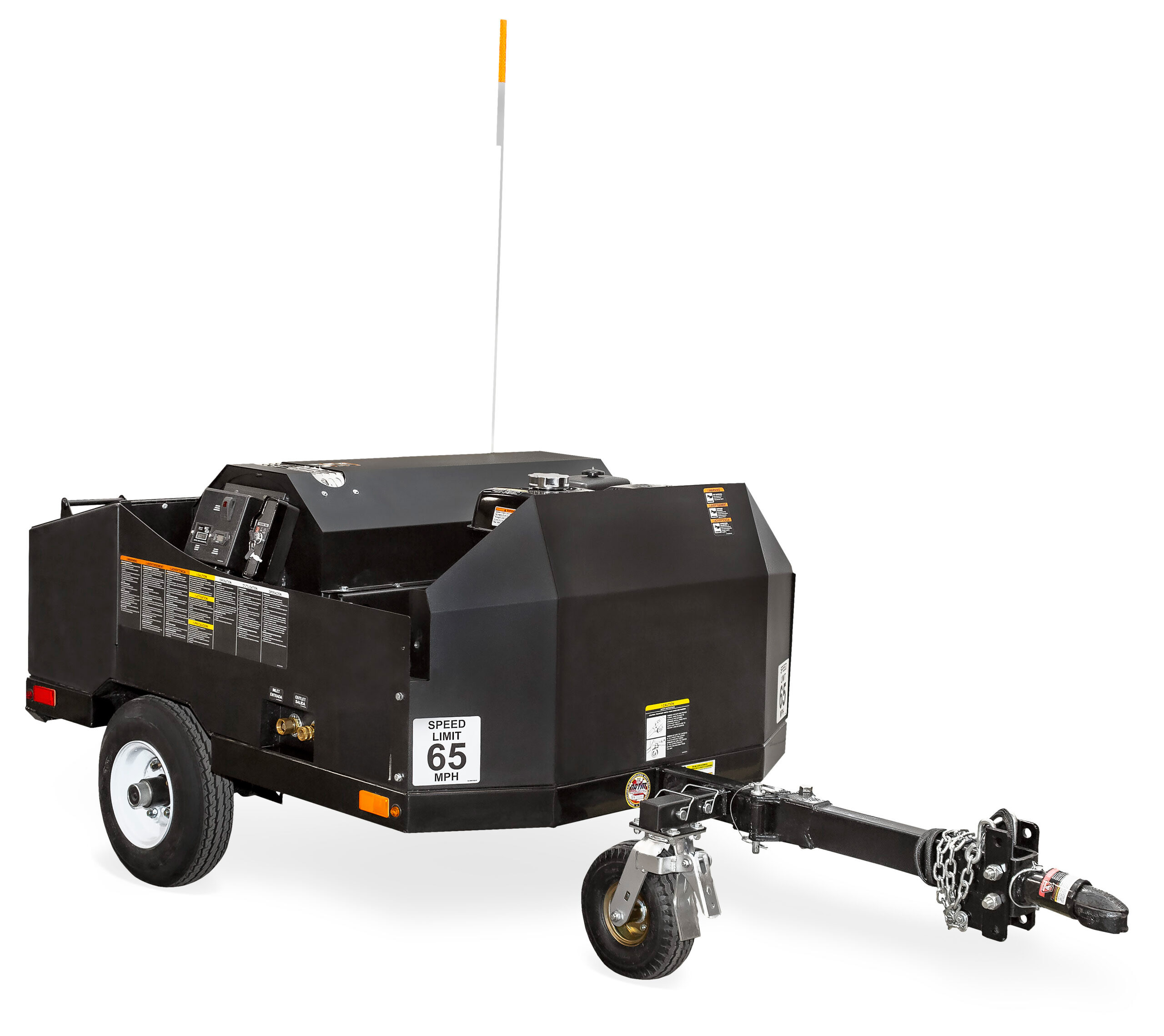

Easy to tow from one job to the next, this trailer offers the convenience of portable cleaning. Equipped with a 12V Beckett burner, this trailer is ideal for heavy-duty cleaning.
Pump:
- Adjustable stainless-steel and brass unloader valve
- Forged brass manifold
- Thermal relief valve
Engine:
- Remote engine start and choke
- 12V electric start – battery not included
Frame:
- Reinforced powder coated steel frame
- Locking rear storage area – 2.875 cubic feet
- Sealed LED trailer lights
- 2-inch ball hitch
- Caster brake (Use when unhitched)
- (2) 4.80-8 8-inch bias ply tires
Components:
- ½-inch schedule 80 pipe-coil with 4-pancake heat exchanger
- 12V Beckett burner
- No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel)
- Engine hour meter
- 1,000-lb. axle
Miscellaneous:
- Temperature rise 140°F/60°C above ambient
Safety Features:
- Removable safety flag for transportation and guidance when backing up
- Recommended maximum speed is 65 mph
- DOT approved
- 250°F high temperature safety limit switch
Unit Includes:
- Quick connect nozzles – 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch steel wire-braided high pressure hose
- Professional-grade insulated trigger gun with safety lock-off
- Adjustable pressure insulated dual
Limited Warranties:
- 3 year engine
- 7 year pump
| MODEL NUMBER | PSI | GPM | DISPLACEMENT/ENGINE | PUMP | ENGINE FUEL TANK CAPACITY | BURNER FUEL CAPACITY | BURNER FUEL CONSUMPTION | BTU/Hr |
|---|---|---|---|---|---|---|---|---|
| HMT-4004-0MGH | 4000 | 3.7 | 389cc Honda GX390 OHV+ | General | 1.61 gallons | 10.0 gallons | 2.45 gph | 343,000 |
| HMT-4004-0MGV | 4000 | 3.7 | 408cc Vanguard OHV | General | 1.61 gallons | 10.0 gallons | 2.45 gph | 343,000 |
Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory
49 state engine. Not for sale in California.
