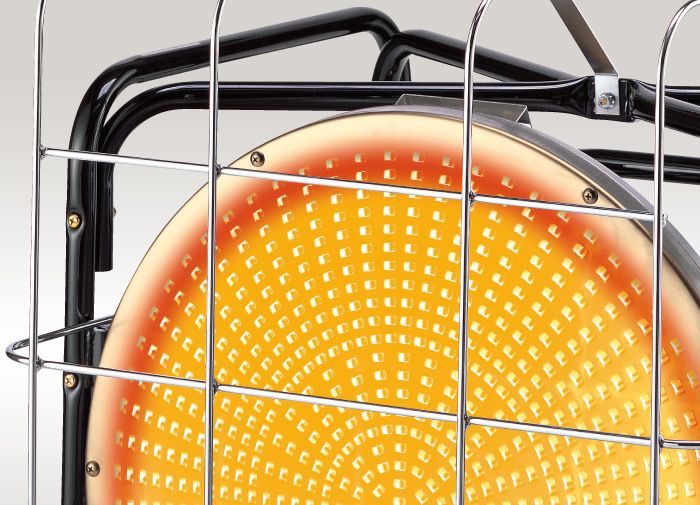

RADIANT HEAT – Heat penetrates evenly like heat from sunlight.
OUTDOOR USE – VAL6 is not affected by wind, unlike forced air heaters that suffer from heat loss in the ambient air.
HEAT TRANSFER – VAL6 generates infrared heat directly to the object without any air movement creating a dust-free comfortable environment.
ODORLESS – A clean combustion system produces no odor or smoke while running.
ENERGY SAVINGS – VAL6’s state of the art combustion chamber enables virtually 100% fuel to energy conversion.
| Model Number | VAL6 KBE5S | VAL6 KBE5L 2-step |
|---|---|---|
| Heat Output | 11,000BTU/h (32.5kw) | High: 118,000 BTU (Low: 100,000 BTU) |
| Nozzle | 0.85 gal/h | N/A |
| Fuel | Diesel, Kerosene | Kerosene or Fuel-oil no heavier than No.2(Diesel) |
| Fuel Consumption | N/A | high: 0.90 gallons/h (Low: 0.75 gallons/h) |
| Power Source | 120V 60Hz | |
| Power Consumption | 90W | in ignition: 150W | in operation: 120W |
| Monitoring System/Safety Device | Photocell flame monitor 3A Fuse | Photocell flame monitor 3A Fuse, Tip-over switch |
| Adjustable Disc Angle | Tilts Upward 20 degrees | N/A |
| External Dimensions (in) | 36.1×25.8×27.7 | 36.3×28.0×29.2 |
| Dry Weight (lbs) | 83.8 | 92.6 |
