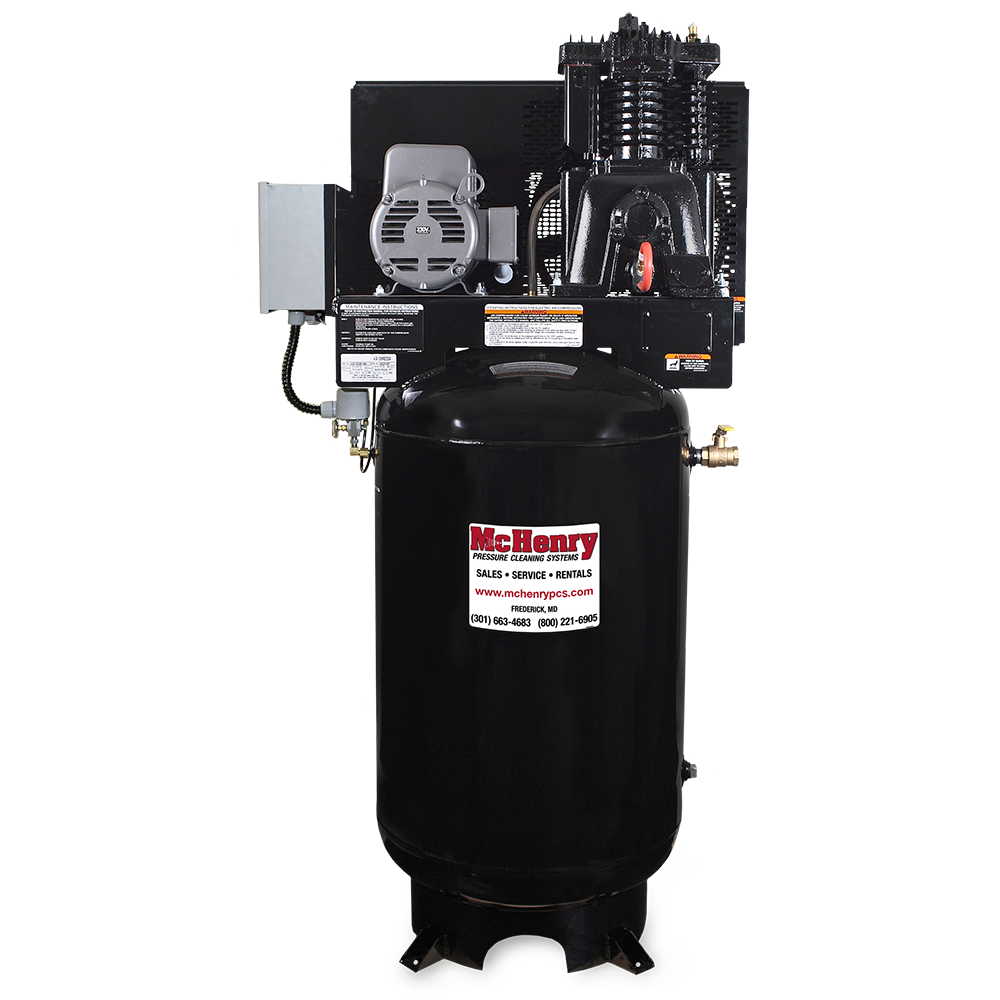

The M Series air compressors are available in many motor configurations and offer maximum air power day-in and day-out.

Compressor Pump:
·Cast iron compressor pump
·Splash lubricated
·Stainless-steel braided discharge hose
·Large canister intake filter
·Oil level sight indicator

Motor:
·Industrial low RPM motor
·Magnetic start for thermal overload protection

Frame:
·Powder coated ASME receiver tank
·3/16-inch base plate to reduce vibration
·Powder coated two-piece belt guard

Components:
·ASME safety valves
·Tank pressure gauge
·Hour meter
·Large fly wheel
·Intake filter/silencer
·Tank shut-off valve

Limited Warranty:
·1 year electric motor

Certification:
·ASME Boiler and Pressure Vessel Code – U

Models Available:
ACS-23105-80VM – Horsepower/Motor: 5.0 HP, 230V, 1Ø, 23.0A
Net/Ship Wt.: 589/661 lb.
ACS-20305-80VM – Horsepower/Motor: 5.0 HP, 200V, 3Ø, 16.1A
Net/Ship Wt.: 588/660 lb.
ACS-23305-80VM – Horsepower/Motor: 5.0 HP, 230V, 3Ø, 13.8A
Net/Ship Wt.: 588/660 lb.
ACS-46305-80VM – Horsepower/Motor: 5.0 HP, 460V, 3Ø, 6.9A
Net/Ship Wt.: 588/660 lb.
